Lifting Socket with Short Wavy Tail
Product Description
Short Wavy Tail Lifting Sockets are quick to install and versatile for lifting most types of precast units.
The socket of the wavy tails are available in high grade zinc plated
Product Details

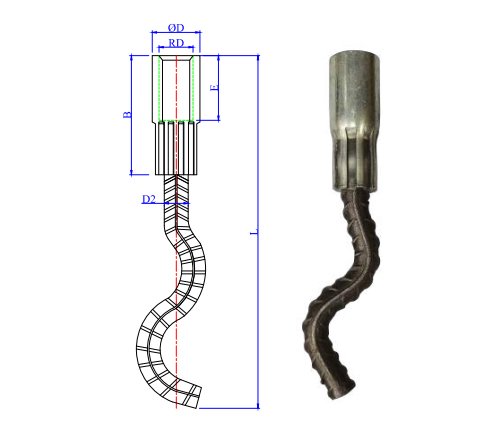

Short Wavy Tail Lifting Sockets Size:
| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | |||
| D | E | L | D2 | |||
| JWFS12108 | RD12×108 | 16 | 22 | 108 | 8 | 500 |
| JWFS14130 | RD14×130 | 18 | 25 | 130 | 10 | 800 |
| JWFS16167 | RD16×167 | 21.5 | 27 | 167 | 12 | 1200 |
| JWFS18175 | RD18×175 | 24 | 34 | 175 | 14 | 1600 |
| JWFS20187 | RD20×187 | 27.5 | 35 | 187 | 14 | 2000 |
| JWFS24240 | RD24×240 | 31.5 | 43 | 240 | 16 | 2500 |
| JWFS30300 | RD30×300 | 39 | 56 | 300 | 20 | 4000 |
| JWFS36380 | RD36×380 | 47 | 68 | 380 | 25 | 6300 |
| JWFS42450 | RD42×450 | 54 | 80 | 450 | 28 | 8000 |
| JWFS52620 | RD52×620 | 67.5 | 100 | 880 | 32 | 12500 |
