Long Waved And Fixing Socket
Product Description
Long Waved And Fixing Sockets are quick to install and versatile for lifting most types of precast units.
The socket of the wavy tail is available in high grade zinc plated
Product Details
Long wavy tailed lifting sockets have an integral reinforcement tail attached,making them ideal for large thin precast panels of medium to high weight.

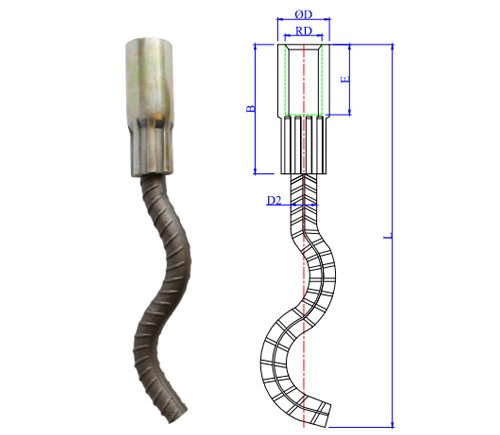

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | |||
| D | E | L | D2 | |||
| JWFS12137 | RD12x137 | 16 | 22 | 137 | 8 | 500 |
| JWFS14130 | RD14x170 | 18 | 25 | 170 | 10 | 800 |
| JWFS16216 | RD16×216 | 21.5 | 27 | 216 | 12 | 1200 |
| JWFS18235 | RD18×235 | 24 | 34 | 235 | 14 | 1600 |
| JWFS20257 | RD20×257 | 27.5 | 35 | 257 | 16 | 2000 |
| JWFS24360 | RD24×360 | 31.5 | 43 | 360 | 16 | 2500 |
| JWFS30450 | RD30×450 | 39 | 56 | 450 | 20 | 4000 |
| JWFS30600 | RD30×600 | 39 | 56 | 600 | 20 | 4000 |
| JWFS36570 | RD36×570 | 47 | 68 | 570 | 25 | 6300 |
| JWFS42620 | RD42×620 | 54 | 80 | 620 | 28 | 8000 |
| JWFS52880 | RD52×880 | 67.5 | 100 | 880 | 32 | 12500 |
