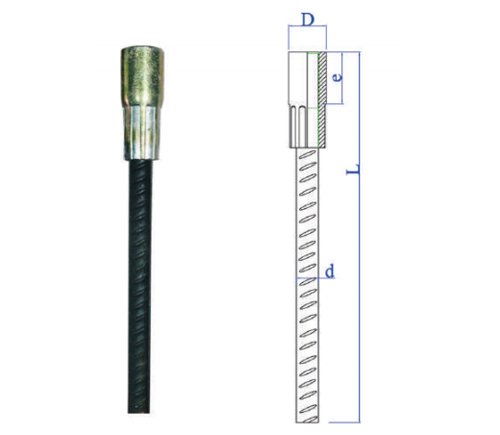

Straight Bar Lifting Socket
Product Details
Size:
| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | |||
| D | e | d | L | |||
| JSBLS12190 | RD12 | 16 | 22 | 8 | 190 | 500 |
| JSBLS12340 | RD12 | 16 | 22 | 8 | 340 | 500 |
| JSBLS16270 | RD16 | 21.5 | 27 | 10 | 270 | 1200 |
| JSBLS16500 | RD16 | 21.5 | 27 | 10 | 500 | 1200 |
| JSBLS20350 | RD20 | 27.5 | 34 | 14 | 350 | 2000 |
| JSBLS20600 | RD20 | 27.5 | 34 | 14 | 600 | 2000 |
| JSBLS24400 | RD24 | 31.5 | 40 | 16 | 400 | 2500 |
| JSBLS24720 | RD24 | 31.5 | 40 | 16 | 720 | 2500 |
| JSBLS30540 | RD30 | 39 | 56 | 20 | 540 | 4000 |
| JSBLS30840 | RD30 | 39 | 56 | 20 | 840 | 4000 |
| JSBLS36670 | RD36 | 47 | 68 | 25 | 670 | 6300 |
| JSBLS36980 | RD36 | 47 | 68 | 25 | 980 | 6300 |
