Split Foot Erection Anchors: Safe Lifting & Erection for Thin‑Wall Precast Concrete

Split Foot Erection Anchors—cast‑in lifting anchors for thin‑wall precast panels & slabs. Anti‑spalling, high load, CE/ISO compliant. Ideal for horizontal‑to‑vertical lifting & fast erection.

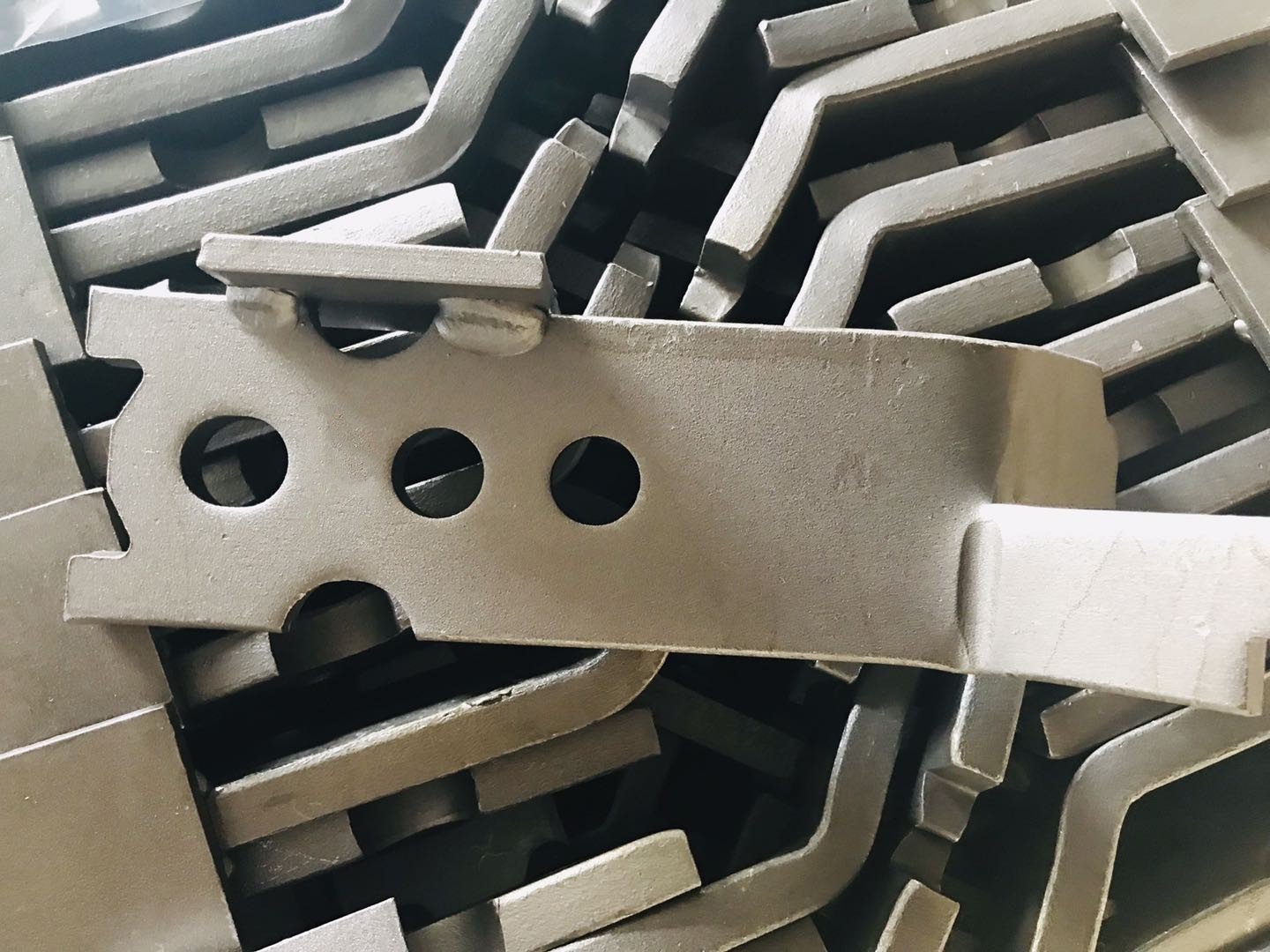

What Are Split Foot Erection Anchors?

Split Foot Erection Anchors are precision cast‑in lifting & erection anchors engineered for the precast concrete industry. Built for thin‑wall precast elements, they deliver reliable load distribution, anti‑spalling protection, and stable lifting during horizontal‑to‑vertical rotation, transportation, and on‑site erection. Made from high‑strength steel with corrosion‑resistant plating, they are the trusted connection for precast wall panels, façade slabs, lightweight beams, and modular components.

Core Advantages for Precast Production & Construction

1. Anti‑Spalling Head Design

The unique split‑foot head structure avoids direct contact between lifting clutch and concrete edge, effectively preventing chipping, spalling, or surface damage during lifting. Shear forces are safely transferred into the anchor body and concrete matrix for consistent structural integrity.

2. Superior Load Capacity & Safety

Engineered with a safety factor ≥3:1 (breaking strength vs. working load limit), these anchors withstand high tension and shear loads. The split‑foot base forms a stable mechanical interlock in concrete, boosting pull‑out resistance and reliability for heavy or large precast elements.

3. Corrosion Resistance & Long Service Life

Available with zinc plating / hot‑dip galvanizing, Split Foot Erection Anchors resist rust, moisture, and harsh site environments—ideal for exterior, coastal, and infrastructure projects.

4. Fast, Simple Installation

• Embed directly into formwork before concrete casting

• Compatible with standard lifting pins, clutches, and rigging systems

• No drilling, retrofitting, or patching needed

• Shorten production cycles and lower labor costs

5. Wide Compatibility & Versatility

Designed for thin‑wall precast elements and suitable for:

• Precast concrete wall panels & façade slabs

• Lightweight beams, stairs, and balcony components

• Modular building & prefabricated housing

• Infrastructure: tunnel segments, utility panels, bridge cladding

• Horizontal‑to‑vertical edge lifting & positioning

6. Full Certification & Traceability

Manufactured under strict quality control, Split Foot Erection Anchors carry CE, UKCA, ISO certifications. Each unit is marked with load rating, batch code, and standard info for full traceability and compliance with global construction safety rules.

Why Choose Split Foot Erection Anchors?

• Better for thin slabs: Lower embedment depth while keeping high strength

• Clean surface finish: No protrusions; reduces repair work

• Stable lifting: Minimizes cracking in edge zones

• Cost‑efficient: Faster installation, less rework, longer lifespan

• Universal fit: Works with most precast lifting accessories

Ideal for Precast Manufacturers & Contractors

Whether you run a precast factory, manage construction projects, or supply building hardware, Split Foot Erection Anchors improve safety, speed, and quality across production, transportation, and erection. We support custom sizes, load ratings, and OEM/ODM to match your project specifications.
