Sandwich panel erection anchor
Product Description
JCD Sandwich panel erection anchor is designed to be used for erection sandwich panels.
The unique design utilizes two bent shear bars extending through the anchor that distribute loads evenly to both concrete wythes, while minimizing the loss of insulation.
JCD Sandwich panel erection anchor is easy to install and requires no special lifting equipment, only the standard ring clutch.
Product Details
JCD Sandwich panel erection anchor is a product used for the installation of sandwich panels. It provides a secure and stable connection between the panels and the supporting structure. JCD Sandwich panel erection anchor is easy to use and ensures a quick and efficient installation process. It is made of high-quality materials, ensuring durability and longevity. JCD Sandwich panel erection anchor is an essential tool for any construction project involving sandwich panels.

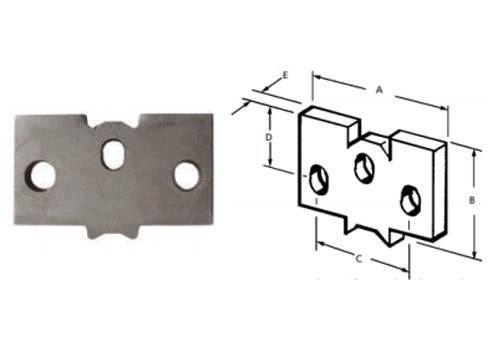

Size:
| ITEM NO. | Size | Dimensions(mm) | |||
| B | C | E | A | ||
| JSPEA077G | 4T | 3-1/4" | 4-3/8" | 5/8" | 6" |
| JSPEA184G | 8T | 4-3/4" | 4" | 3/4" | 6" |
| JSPEA242G | 10T | 4-3/4" | 5" | 3/4" | 7" |
| JSPEA243G | 10T | 4-3/4" | 6" | 3/4" | 8" |
