6T Forged Erection Anchor
A forged erection anchor is a heavy-duty construction fastener designed to connect steel frameworks to concrete bases. It features a forged steel bolt with a threaded section on one side and a bent, hook-shaped end on the other. The hooked portion is cast into the concrete, while the threaded side allows for the secure attachment of structural steel elements. These anchors are engineered to handle significant tension and shear forces, making them essential for major projects like high-rise buildings, bridges, and industrial structures.
3T/6T/12T
SF 4:1
Like 6T :
L - Length: 10-1/2”
Weight (lbs): 2.94W: 3-3/16”
Size: 6T
Ring Clutch System: 4T-6T
D: 7/8”
T - Thickness: 5/8”
Anchor Ultimate Mechanical Load in Tension (lbs): 48,000
N: 2-1/2”

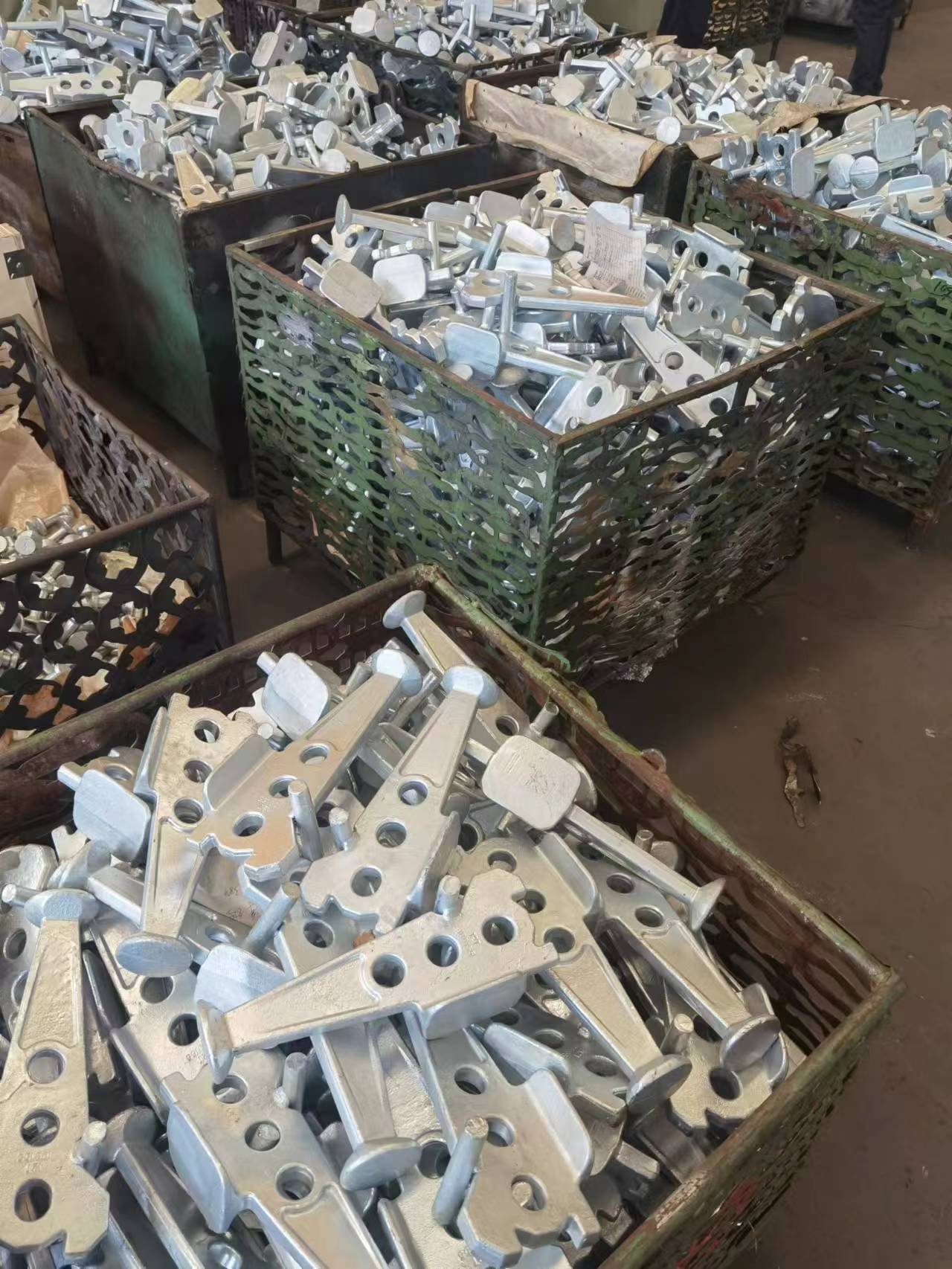

Forged Erection Anchor is a high‑strength pre‑embedded lifting and anchoring component manufactured via hot forging from high‑grade alloy steel or carbon steel. It is designed for safe lifting, tilting, positioning, and temporary / permanent fixing of precast concrete panels, steel structures, and building components. With a forged integrated structure, anchor foot / shear plate, and lifting head, it forms a reliable force‑transfer system when embedded in concrete, complying with international construction safety standards and featuring a high safety factor.
Extreme Strength & DurabilityForged microstructure delivers higher tensile, shear, and fatigue resistance than stamped or welded anchors; stable under heavy loads and dynamic forces.
High Safety FactorEngineered to meet strict safety requirements (typically 4:1 or 5:1), reducing risk in lifting and erection.
Integral Forged StructureOne‑piece forging avoids weld defects or breakage; uniform force distribution and long service life.
Anti‑breakout & Anti‑spallingOptimized anchor foot / shear plate design disperses stress, prevents concrete cracking during lifting and installation.
Easy & Efficient InstallationPre‑embedded in formwork before concrete casting; compatible with standard lifting clutches, no extra machining or assembly.
Wide CompatibilitySuitable for normal concrete, lightweight concrete, and thin‑wall precast elements; adaptable to diverse construction conditions.
Corrosion ResistanceAvailable with galvanized, black oxide, or stainless steel for outdoor, humid, and industrial environments.
Typical Applications
Precast concrete wall panels, façade slabs, and tilt‑up construction
Lifting and erecting precast beams, columns, and segmental components
Steel structure installation, bracing, and temporary anchoring
Bridge, tunnel, and infrastructure precast element handling
Industrial plants, commercial buildings, and residential construction
Transportation, hoisting, and on‑site assembly of building components
