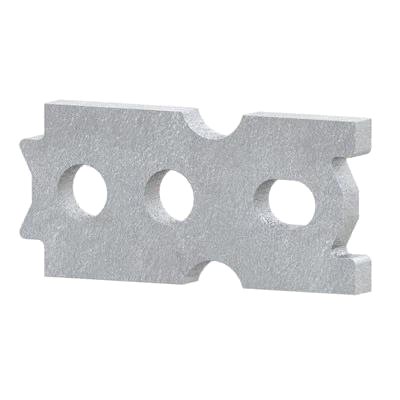

The QuikLift Erection Head Anchor is a specialized, high-strength lifting anchor engineered for edge lifting and controlled handling of thin-walled precast concrete elements, particularly during transitions from horizontal to vertical orientation. Designed to be embedded during casting, it works seamlessly with compatible QuikLift clutches to provide a safe, efficient connection for tilting, lifting, and installing panels and components.
JCD quick lift erection Head Anchor is designed for horizontal to vertical edge lifting and handling of thin-walled precast elements.
Surface:H.D.G.
Items:2T/4T/8T
2Tx4-1/4''
2TX7-7/8''
4TX7-7/16''
4TX10-1/2''
8TX13-1/4''
SF: 4:1
Materials :Q355B/Q355D
Key Applications
Thin-Walled Precast Panels & SlabsIdeal for edge lifting of precast concrete wall panels, curtain walls, hollow-core slabs, and thin partition walls. The anchor’s low embedment profile avoids weakening thin sections, making it suitable for elements with limited thickness.
Horizontal-to-Vertical Tilt-Up LiftingPerfect for tilt-up construction, where large panels are cast flat, then lifted and tilted into vertical position. The anchor’s design supports controlled rotation, reducing the risk of cracking or damage during the transition.
General Precast Component HandlingUsed in factories and on-site for lifting precast stairs, balconies, spandrels, and other elements requiring edge pick-up or multi-angle lifting (from 0° to 90°).
Modular & Off-Site ConstructionSupports the safe lifting and installation of modular units, bathroom pods, and prefabricated building modules where edge lifting is required to avoid damage to finished surfaces.
Core Advantages
Thin-Section CompatibilityShort embedment depth minimizes concrete stress and prevents splitting, even in elements as thin as 50–80 mm.
Full-Angle Load CapacityEngineered to perform reliably under both horizontal (shear) and vertical (tension) loads, eliminating the need for multiple anchor types for different lift phases.
Fast, Secure ConnectionWorks with QuikLift’s quick-lock clutches for tool-free, one-step engagement and release. This speeds up cycle times in precast yards and on construction sites.
High Durability & SafetyManufactured from high-strength forged steel with a 4:1 safety factor (or higher) and protected by hot-dip galvanizing, offering long-term corrosion resistance and reliable performance in harsh environments.
Reduced Risk of DamageEven load distribution across the anchor’s base reduces the risk of edge spalling, cracking, or panel deflection, leading to fewer rejected or repaired elements.

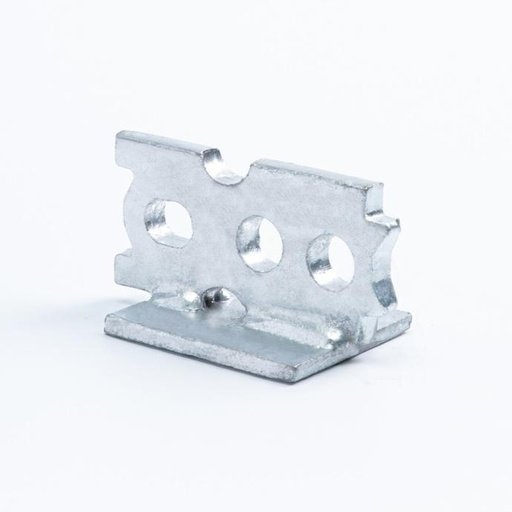

Versatile & ScalableAvailable in multiple load ratings (typically 1.3–32 tonnes) and configurations, including optional shear plates or bars, to match project-specific requirements.
JCD Plant located in Qingdao city,China.
JCD tech erection anchor is manufactured by own laser cutting machines.
It will save cost and time.
More beautiful appreance,popular in America market.
