Cast-in Lifting Loop
Product Description
Cast in Lifting Loops are one of the
most economic lifting systems designed for lifting precast
concrete units where the lifting points will be hidden once
installed in its final position. It has a color coded tag that
identifies the SWL of the loop. It is used for applications such
as beams or big concrete elements where there is usually
sufficient surrounding concrete.
Product Details
Size:

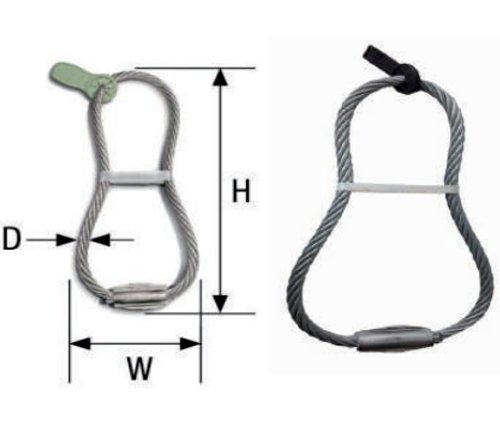

| ITEM NO. | Size | Dimensions(mm) | ||
| D | W | H | ||
| JCLL0500 | 500LBS | 3 | 60 | 203 |
| JCLL1600 | 1600LBS | 6 | 60 | 210 |
| JCLL2400 | 2400LBS | 7 | 75 | 225 |
| JCLL3200 | 3200LBS | 8 | 75 | 235 |
| JCLL4000 | 4000LBS | 9 | 85 | 280 |
| JCLL5000 | 5000LBS | 10 | 85 | 308 |
| JCLL6600 | 6600LBS | 12 | 100 | 340 |
