Bolt Anchor
Product Description
These are usually used for light to medium-weight units.
They are easy to install in the concrete element and may be recessed if required.
Wavy tail anchors are particularly easy to fix as they may require no further reinforcement.
Tube and flat plate sockets are also available, which depend on separate reinforcement.
Product Details
Size:

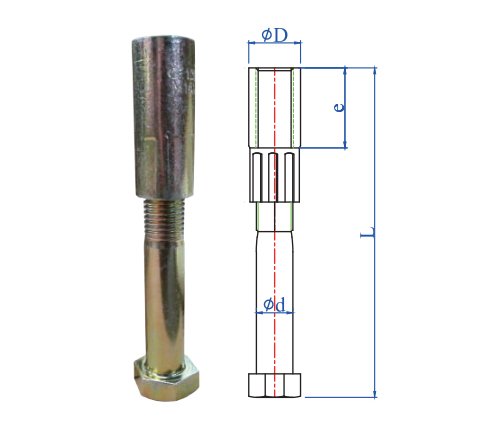

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | ||
| D | e | L | |||
| JBA12055 | M12×55 | 16 | 20 | 55 | 500 |
| JBA12100 | M12×100 | 16 | 20 | 100 | 500 |
| JBA12150 | M12×150 | 16 | 20 | 150 | 500 |
| JBA16075 | M16×75 | 21.5 | 27 | 75 | 1200 |
| JBA16140 | M16×140 | 21.5 | 27 | 140 | 1200 |
| JBA16220 | M16×220 | 21.5 | 27 | 220 | 1200 |
| JBA20090 | M20×90 | 27.5 | 35 | 90 | 2000 |
| JBA20150 | M20×150 | 27.5 | 35 | 150 | 2000 |
| JBA20180 | M20×180 | 27.5 | 35 | 180 | 2000 |
| JBA24200 | M24×200 | 31.5 | 43 | 200 | 2500 |
| JBA30240 | M30×240 | 39 | 56 | 240 | 4000 |
| JBA36300 | M36×300 | 47.5 | 69 | 300 | 6300 |
