Bolt Anchor Type T
Product Description
This lifting sleeve pressed on a bolt 8.8 is used for lifting precast concrete floor slabs from 1.3 tons to 7.5 tons.
Is available in metric and round thread.
The sleeves are also available in stainless steel, but the bolt 8.8 always remains in the steel version.
It can withstand high loads.
Product Details
Size:

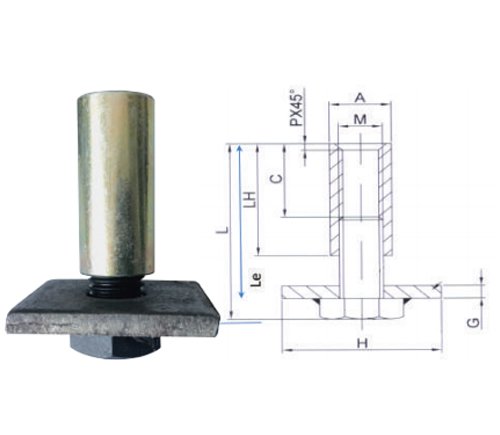

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | ||
| A | C | L | |||
| JBAT12055 | M/RD12 | 16 | 22 | 55 | 500 |
| JBAT16075 | M/RD16 | 21.5 | 29 | 75 | 1200 |
| JBAT20090 | M/RD20 | 27.5 | 35 | 90 | 2000 |
| JBAT24110 | M/RD24 | 31.5 | 46 | 110 | 2500 |
| JBAT30140 | M/RD30 | 39 | 60 | 140 | 4000 |
