Solid Stud With Cross Bar
Product Description
Solid Stud With Cross Bar are inner thread inserts designed for attachment to concrete elements. Inserts anchor to
concrete with the help of anchor pin which is attached to the body of the insert.
Product Details
Size:

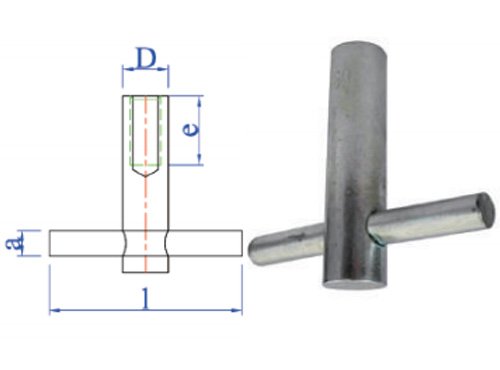

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | ||
| D | e | l | |||
| JSSCB10060 | M10×60 | 15 | 20 | 60 | 600 |
| JSSCB12050 | M12×50 | 18 | 24 | 50 | 900 |
| JSSCB12075 | M12×75 | 18 | 24 | 75 | 900 |
| JSSCB16075 | M16×75 | 24 | 32 | 75 | 1700 |
| JSSCB20075 | M20×75 | 28 | 35 | 75 | 2300 |
| JSSCB24100 | M24×100 | 34 | 45 | 100 | 3000 |
| JSSCB30125 | M30×125 | 50 | 60 | 125 | 6000 |
