Lifting Socket With Nail Plate
Product Description

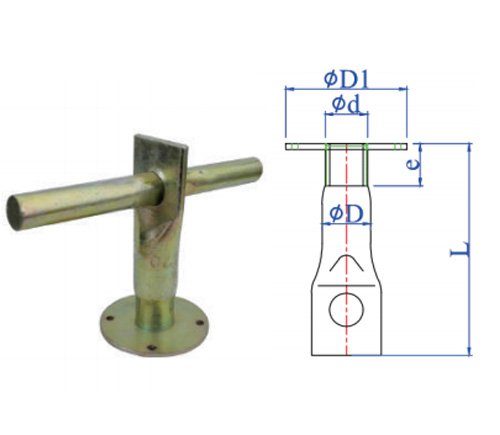

Lifting Socket with cross pin and nail plate transfer forces directly into the concrete without additional reinforcing steels.
The Lifting socket with cross pin and nail plate did not need plastic nail plate. The cross pin anchors itself into the concrete by means of form closure.
Product Details
Size:
| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | ||
| e | L | D1 | |||
| JLSNP10050 | M10 | 10 | 50 | 40 | 350 |
| JLSNP12060 | M12 | 12 | 60 | 40 | 500 |
| JLSNP12070 | M12 | 12 | 70 | 40 | 600 |
| JLSNP16080 | M16 | 16 | 80 | 50 | 800 |
| JLSNP16100 | M16 | 16 | 100 | 50 | 1000 |
| JLSNP20100 | M20 | 20 | 100 | 50 | 1250 |
| JLSNP24120 | M24 | 24 | 120 | 60 | 1800 |
