Lifting Socket With Cross Bar
Product Description
Lifting Socket With Cross Bar designed for attachment to concrete elements.
The cross bar is used to transfer the load into the concrete so in most cases no additional reinforcement is needed.
Product Details
Size:

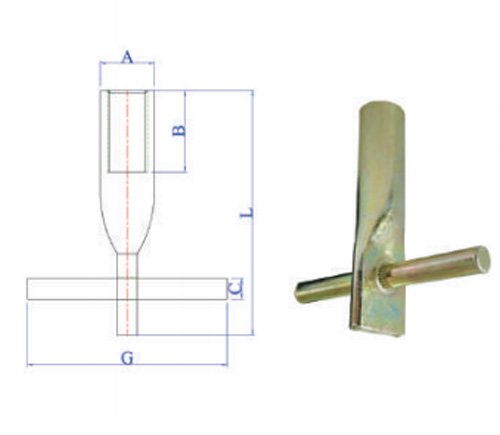

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | |||
| A | B | C | L | |||
| JLSCB12060 | M12×60 | 16 | 22 | 10 | 60 | 500 |
| JLSCB12085 | M12×85 | 16 | 22 | 10 | 85 | 500 |
| JLSCB16075 | M16×75 | 21.5 | 25 | 10 | 75 | 1200 |
| JLSCB20120 | M20×120 | 27 | 30 | 10 | 120 | 1600 |
