Lifting Insert
Product Description
Lifting Insert is used for the fixing and transporting of light precast concrete units. A reinforcement
bar has to be inserted through the cross holes thus a safe transmission of the static forces into the
concrete is guaranteed.
Product Details
Size:

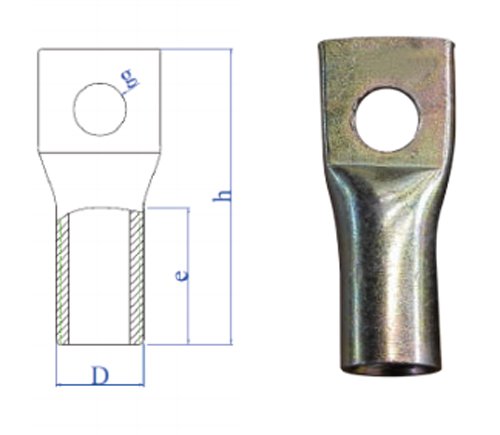

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | |||
| D | e | h | g | |||
| JLI12060 | M12×60 | 16 | 22 | 60 | 10 | 500 |
| JLI16075 | M16×75 | 21.5 | 27 | 75 | 13 | 1200 |
| JLI20095 | M20×95 | 27.5 | 35 | 95 | 15 | 2000 |
| JLI24100 | M24×100 | 31.5 | 40 | 100 | 17.5 | 2500 |
| JLI30135 | M30×135 | 39 | 53 | 135 | 20 | 4000 |
