The JCD Lifting cable baim ring clutch is assembly consists of a cable, swage, clutch body and curved bolt handle.
The JCD Lifting cable baim ring clutch is identical in use to the standard ring clutch, but is fabricated with a wire cable bail for more versatility.
The JCD Lifting cable baim ring clutch is often an effective answer for difficult lifting and rotation challenges.
The JCD Lifting cable baim ring clutch is a product designed for lifting heavy loads with cables. It provides a secure and reliable connection between the cable and the lifting equipment, ensuring safe and efficient lifting operations. This clutch is easy to install and has a strong grip on the cable, preventing any slippage during lifting. The JCD Lifting cable baim ring clutch is a durable and high-quality product that is suitable for various industrial applications.

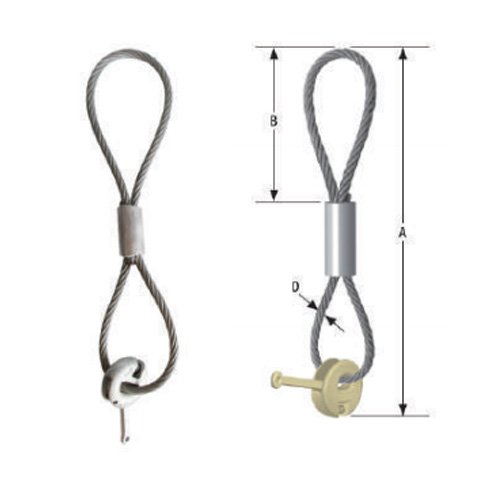

Size:
| ITEM NO. | Size | A | B | D |
| JLCBRC025 | 2.5T | 23-3/4” | 10-1/2” | 1/2” |
| JLCBRC050 | 5.0T | 25-1/2” | 10-5/8” | 3/4” |
| JLCBRC100 | 10.0T | 33-1/2” | 15-1/2” | 1” |
| JLCBRC220 | 22T | 62” | 21” | 1-1/4” |
