Flat Anchor
Product Description

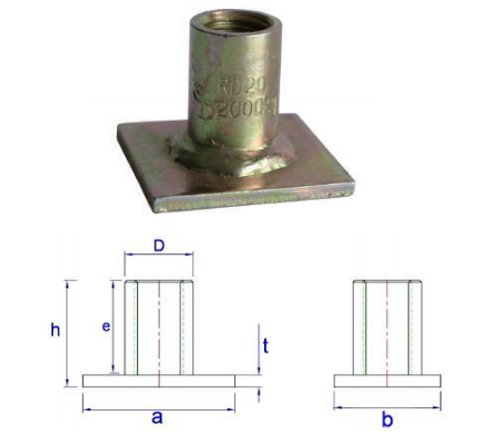

Flat Anchor consist of steel tube with
inner thread welded to a flat steel plate and used with
threaded lifting keys. Flat Anchor are anchored to
concrete with anchor reinforcement.
Product Details
Size:
| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | ||
| D | h | axbxt | |||
| JFA12035025 | RD12 | 16 | 30 | 35×25×4 | 500 |
| JFA16050035 | RD16 | 21 | 35 | 50×35×4 | 1200 |
| JFA18060045 | RD18 | 24 | 44 | 60×45×4 | 1600 |
| JFA20060060 | RD20 | 27 | 47 | 60×60×4 | 2000 |
| JFA24080060 | RD24 | 31 | 54 | 80×60×5 | 2500 |
| JFA30100080 | RD30 | 39 | 72 | 100×80×5 | 4000 |
| JFA36130100 | RD36 | 47 | 84 | 130×100×8 | 6300 |
| JFA42130130 | RD42 | 54 | 98 | 130×130×8 | 8000 |
| JFA52150130 | RD52 | 67 | 117 | 150×130×10 | 12500 |
