Fixing Socket
Product Description
Fixing purpose to have the connection between the concrete elements
Metric thread to have variety usage
Pressed end to stop the concrete going inside
Not for lifting purpose
Product Details
Size:

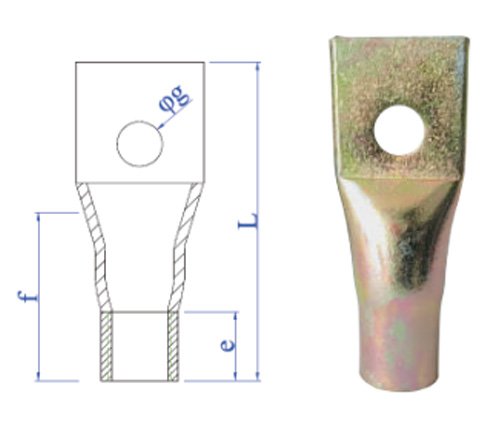

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | |||
| g | e | f | l | |||
| JFS08040 | M8×40 | 6.2 | 8 | 20 | 40 | 200 |
| JFS10050 | M10×50 | 6.2 | 10 | 20 | 50 | 350 |
| JFS12060 | M12×60 | 10.2 | 12 | 25 | 60 | 500 |
| JFS16080 | M16×80 | 12.2 | 16 | 32 | 80 | 800 |
| JFS20100 | M20×100 | 13.2 | 20 | 40 | 100 | 1250 |
| JFS24120 | M24×120 | 14.2 | 24 | 50 | 120 | 1680 |
| JFS30150 | M30×150 | 17.2 | 30 | 70 | 150 | 2200 |
