Fixing Socket with Crimped End
Product Description
Fixing Socket with Crimped End with high grade seamless tube to ensure fixing system work very well.
A reinforcement bar can inserted through the cross hole to guaranteed the fixing socket can fixed into the precast concrete.
Product Details
Size:

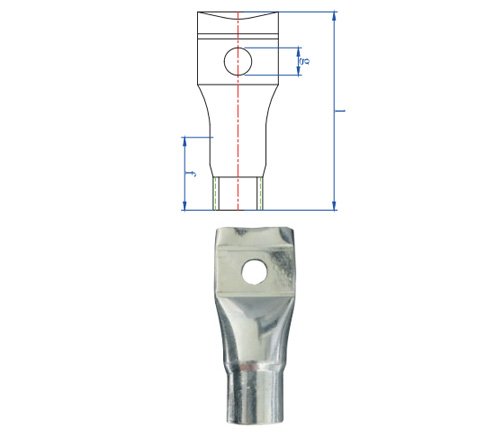

| ITEM NO. | Size | Dimensions(mm) | SWL(KG) | ||
| f | g | L | |||
| JFSCE10050 | M10 | 20 | 6.2 | 50 | 350 |
| JFSCE10060 | M10 | 25 | 6.2 | 60 | 400 |
| JFSCE12060 | M12 | 25 | 7.2 | 60 | 500 |
| JFSCE12070 | M12 | 30 | 7.2 | 70 | 600 |
| JFSCE16070 | M16 | 25 | 9.2 | 70 | 800 |
| JFSCE16080 | M16 | 25 | 9.2 | 80 | 800 |
| JFSCE16100 | M16 | 32 | 9.2 | 100 | 800 |
| JFSCE20100 | M20 | 40 | 12.2 | 100 | 1250 |
| JFSCE24120 | M24 | 50 | 14.2 | 120 | 1800 |
| JFSCE30150 | M30 | 70 | 15.2 | 150 | 2700 |
