The JCD Edge lift anchor is a built in anti-shear foot that eliminates the need for separate shear reinforcement. Suitable for thin panels and low strength concrete lifts, the new design has a larger slot designed for one or two trimmer bars, assisting the precaster during setup.
The JCD Edge lift anchor is a high-quality and durable product used for lifting and transporting heavy loads. The JCD Edge lift anchor is designed with a strong anchor point and a secure locking mechanism to ensure safe and efficient lifting operations. With its versatility and reliability, The JCD Edge lift anchor is an essential tool for construction and industrial applications.

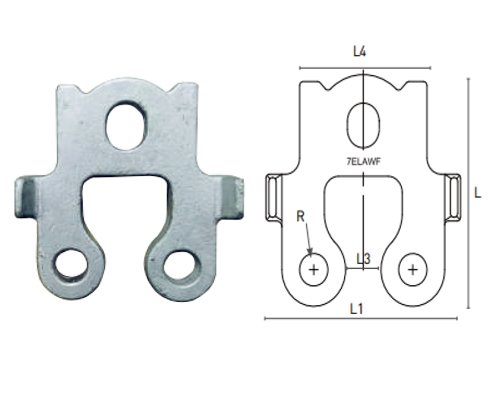

Size:
| ITEM NO. | Size | Dimensions(mm) | |||
| L | L2 | L3 | L4 | ||
| JELA025 | 2.5T | 98 | 90 | 30 | 54 |
| JELA070 | 7.0T | 114 | 110 | 20 | 72 |
| JELA100 | 10T | 161 | 140 | 22 | 78 |
